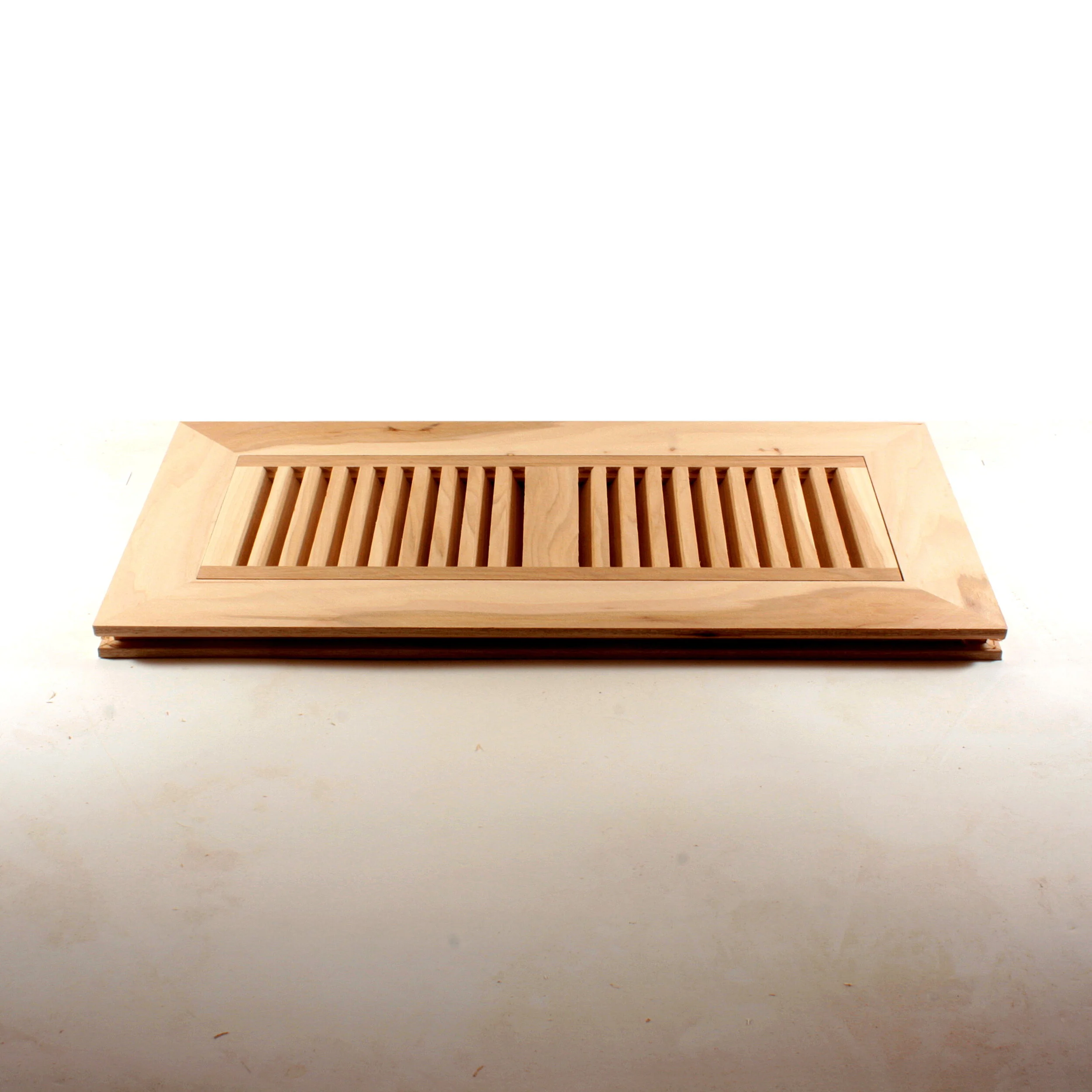

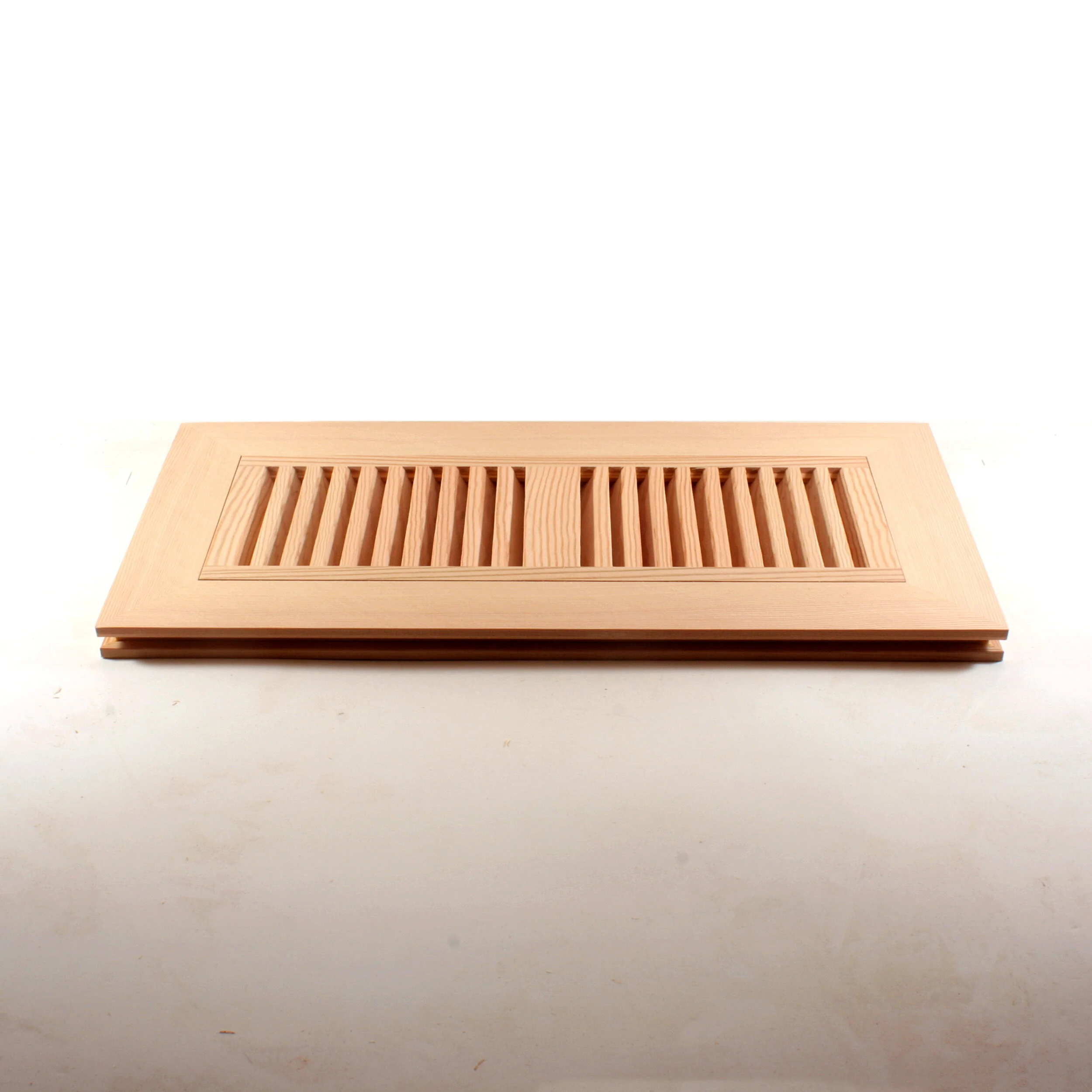

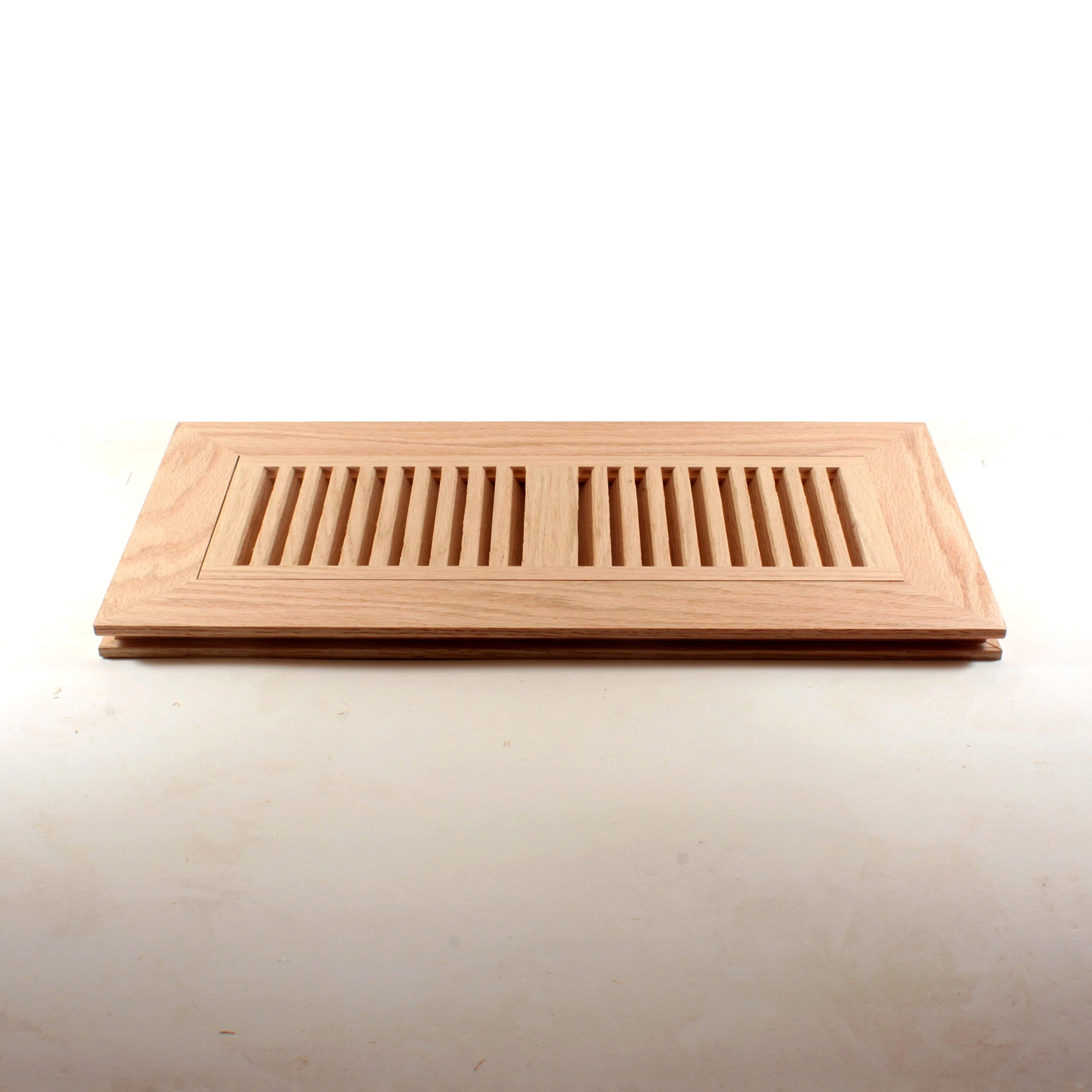

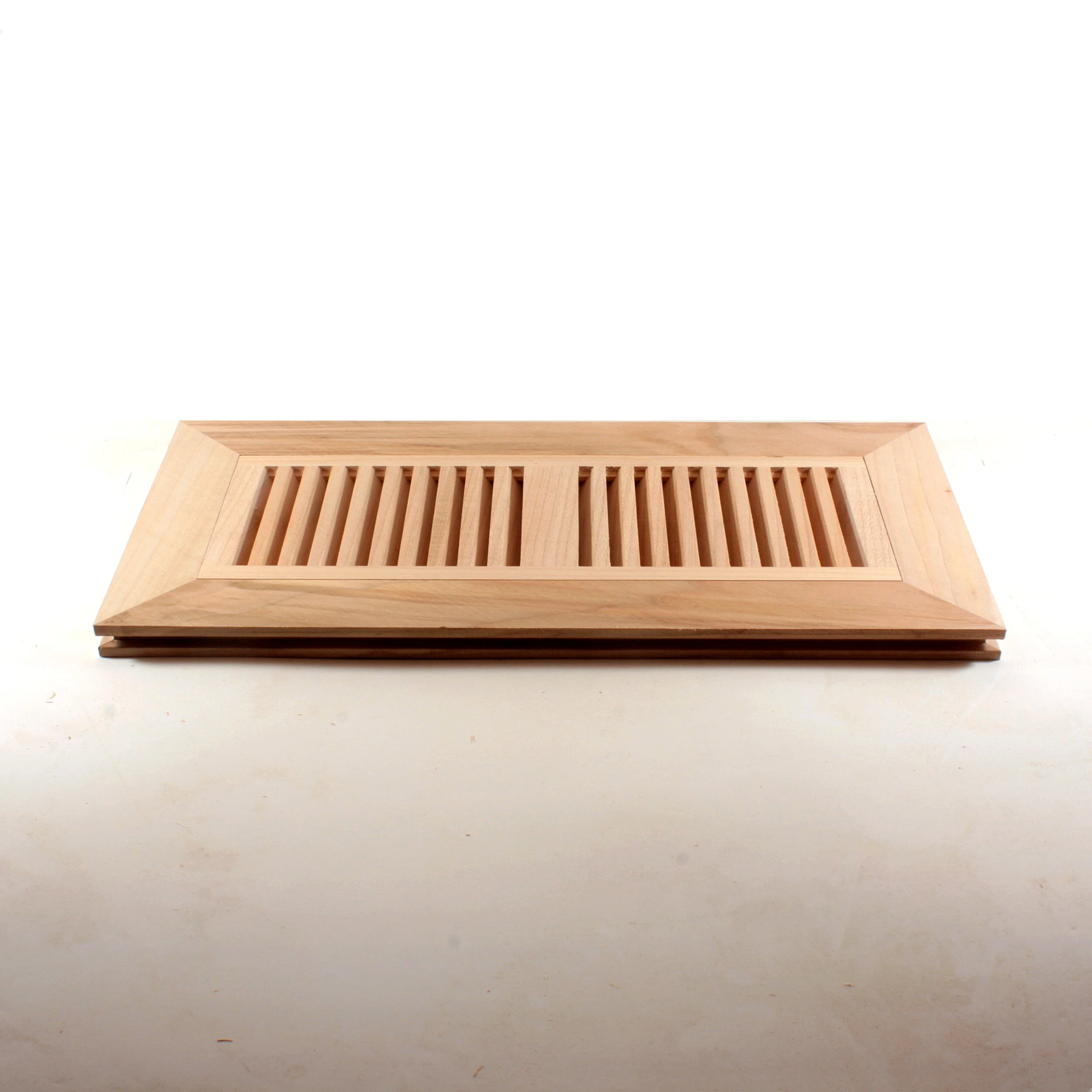

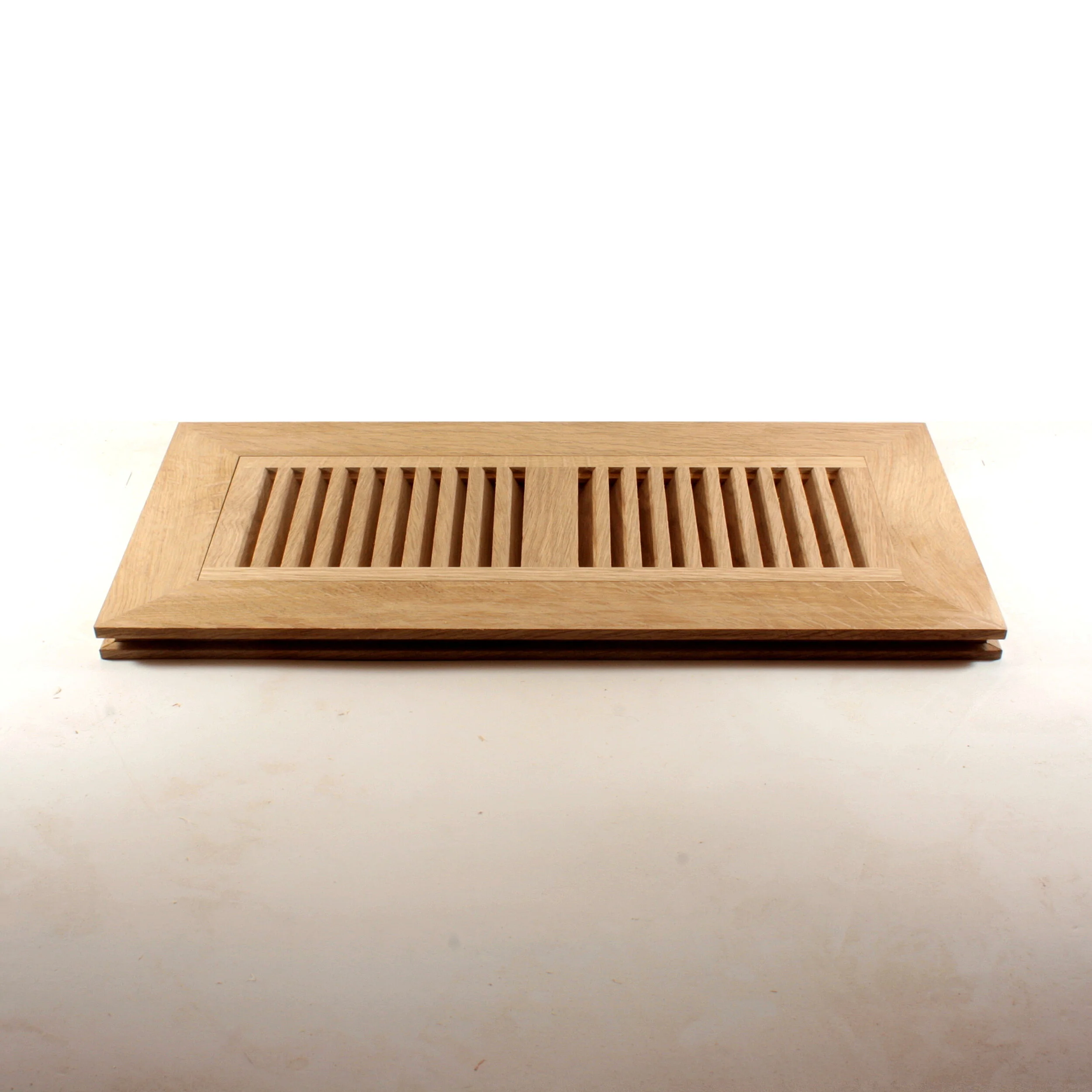

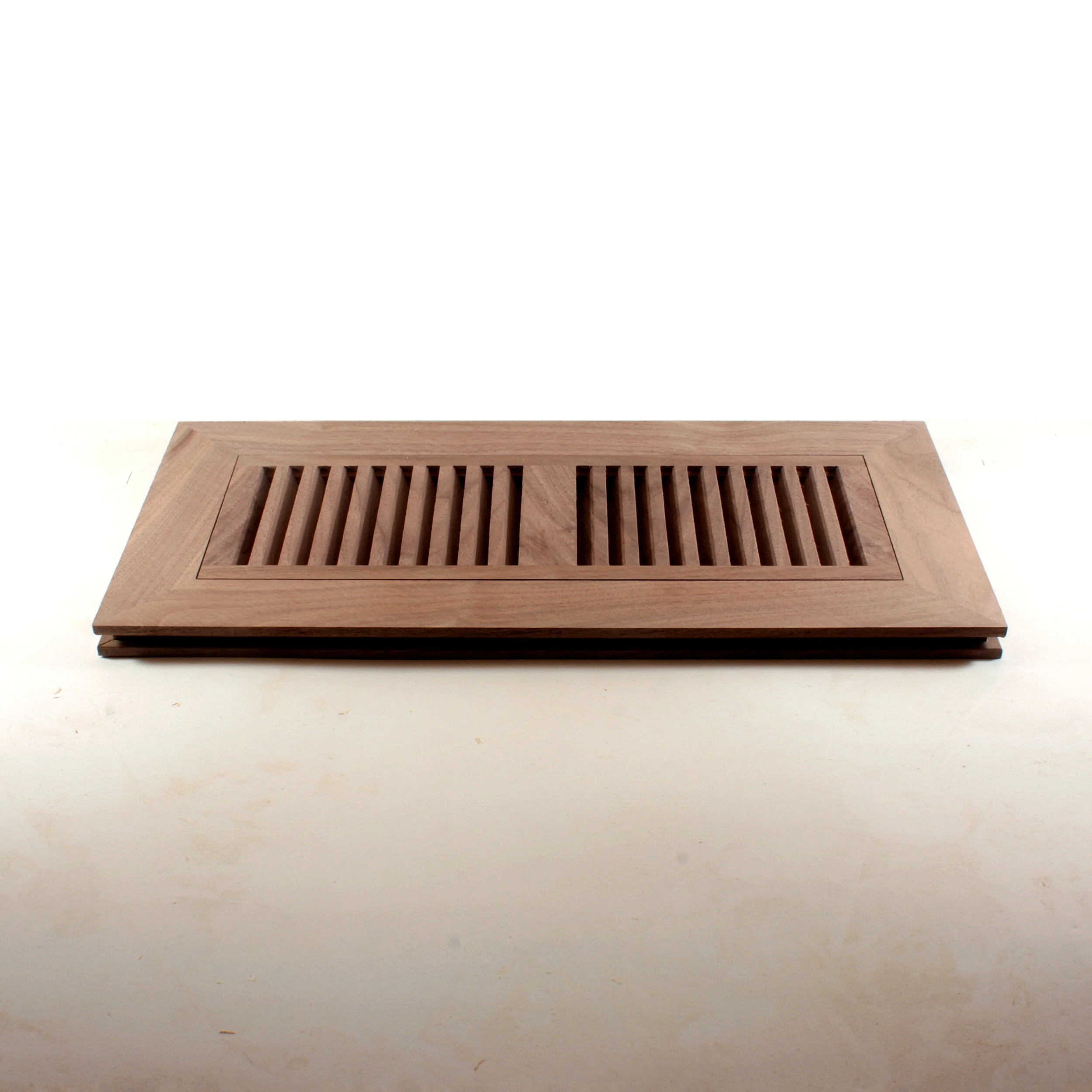

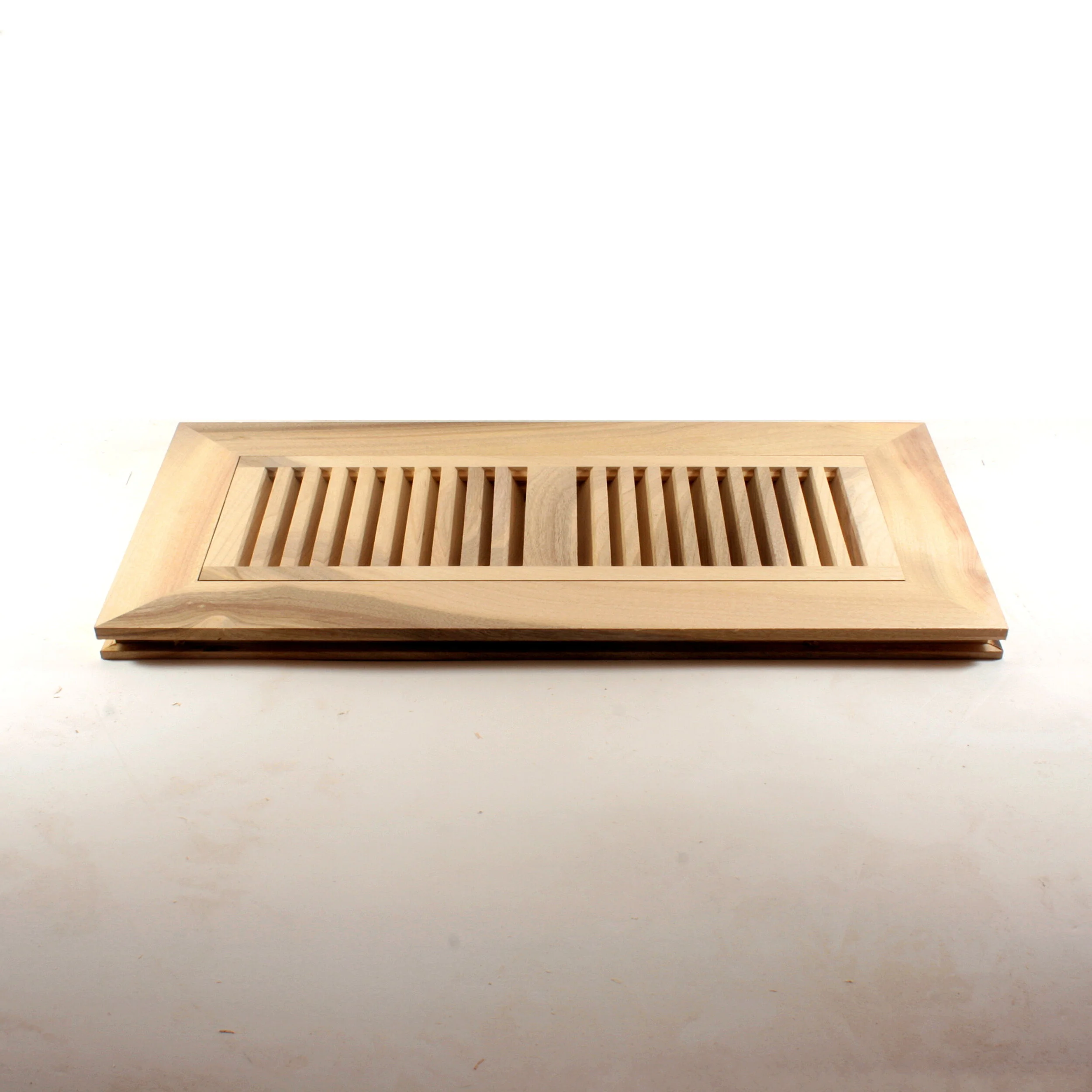

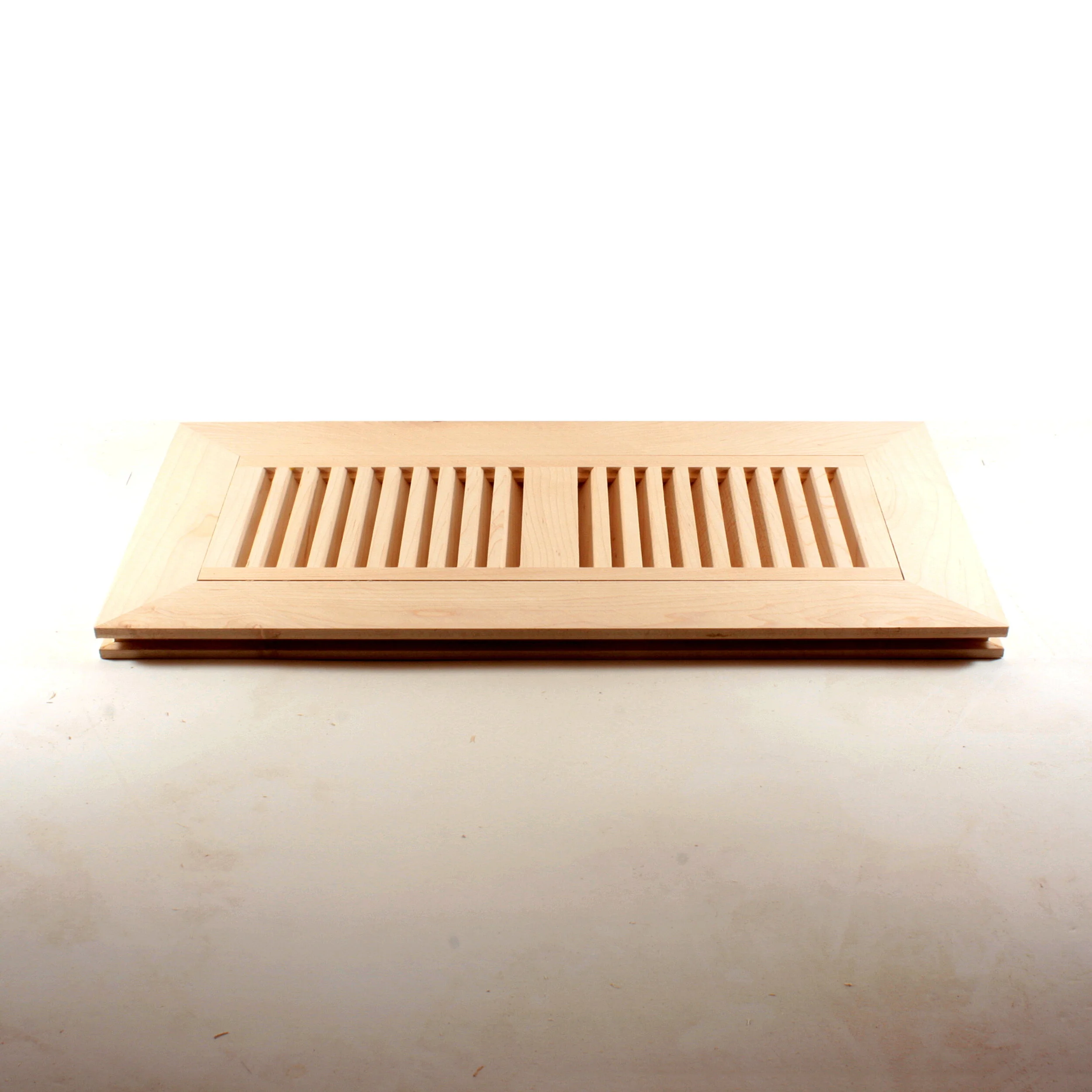

Flush Mount Vent with Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation, but can be cut in afterward. Please refer to our sizing chart below.
Select your wood species:
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Sizing Chart
| Duct Size | Size of Insert | Outside Dimensions of Frame |
| 4 x 10 | 5 ½ x 12 ¼" | 9 x 15 ¾" |
| 4 x 12 | 5 ½ x 14 ½" | 9 x 18" |
| 4 x 14 | 5 ½ x 16 ¾" | 9 x 20 ¼" |
| 4 x 16 | 5 ½ x 19" | 9 x 22 ½" |
| 6 x 10 | 7 ½ x 12 ¼" | 11 x 15 ¾" |
| 6 x 12 | 7 ½ x 14 ½" | 11 x 18" |
| 6 x 14 | 7 ½ x 16 ¾" | 11 x 20 ¼" |
| 6 x 16 | 7 ½ x 19" | 11 x 22 ½" |
| 2 x 10 | 3 ½ x 12 ¼" | 7 x 15 ¾" |
| 2 x 12 | 3 ½ x 14 ½" | 7 x 18" |
| 2 x 14 | 3 ½ x 16 ¾" | 7 x 20 ¼" |
| 2 x 16 | 3 ½ x 19" | 7 x 22 ½" |
| 8 x 10 | 9 ½ x 12 ¼" | 13 x 15 ¾" |
| 8 x 12 | 9 ½ x 14 ½" | 13 x 18" |
| 8 x 14 | 9 ½ x 16 ¾" | 13 x 20 ¼" |
| 8 x 16 | 9 ½ x 19" | 13 x 22 ½" |
Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
